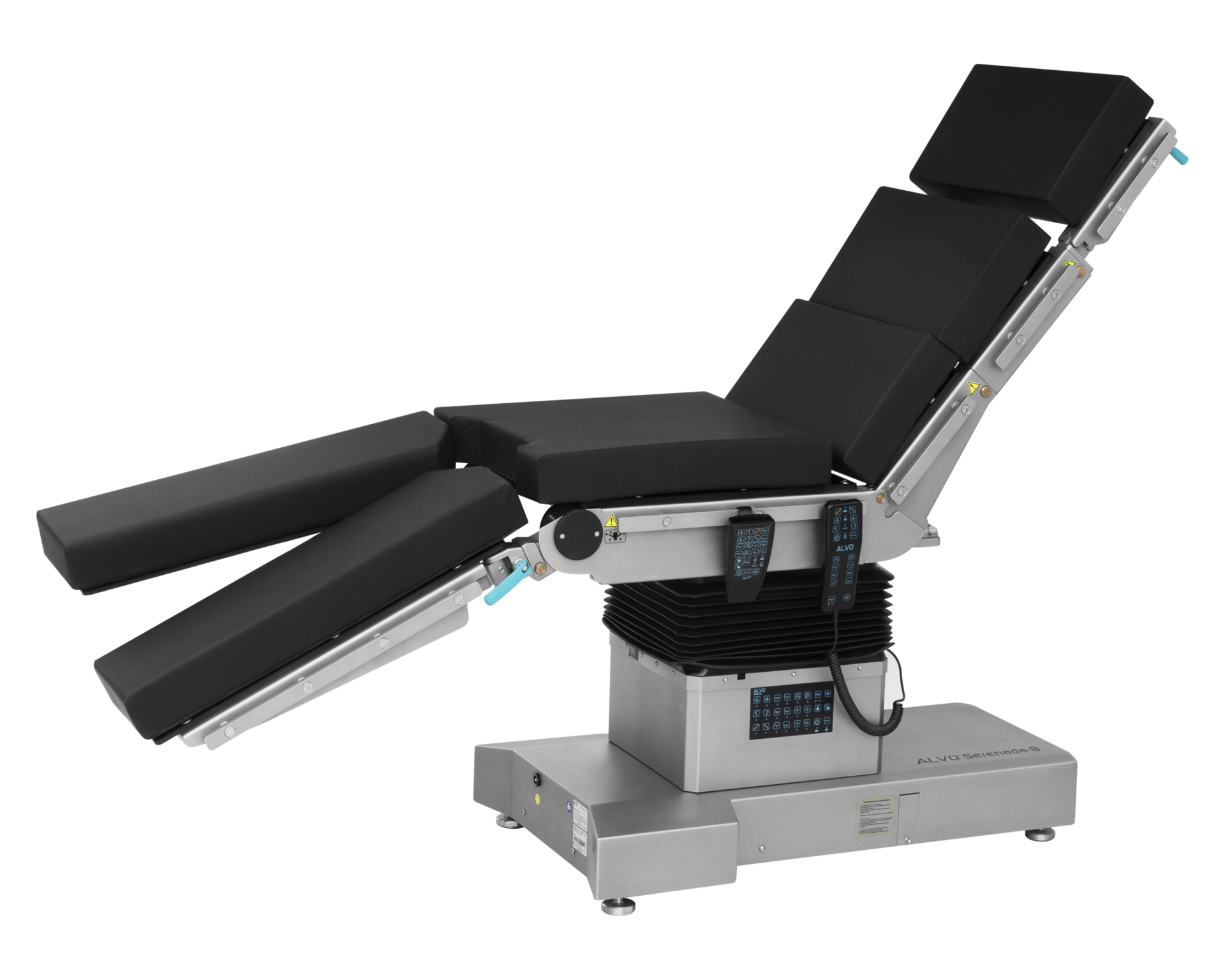

Sınıfının en iyisi maks. 320 kg – 450 kg yük kapasitesi aralığı, Serenada-B'nin bariatri de dahil olmak üzere çeşitli cerrahi disiplinlerde kullanılmasına olanak tanır.
| Tabletop length Modular 4, 5 sections |
2110 mm (2125 mm*) 2115 mm |
Longitudinal shift | 300 mm 420 mm (option – motorized shif) |
| Tabletop width | 500 mm | Trendelenburg reverse -Trendelenburg |
40 o 40 o |
| Tabletop width (with side rails) | 560 mm | Table weight | 250 kg |
| Height adjustment (without pads) – mobile base, manual longitudinal shift | 670 – 1120 mm | Max. dynamic load capacity** | 275 kg |
| Height adjustment (without pads) – mobile base, POWERED longitudinal shift | 680 – 1130 mm | Max. static load capacity (over base) | 320 kg |
| Back rest adjustment | 75 o / -35 o | Max. patient weight | 450 kg*** |
| Foot rest adjustment | 20o / -90o | Power supply | 24 V |
| Foot rest abduction | 180 o | Battery charging time | < 12 h |
| Lateral tilt adjustment | 30o / -30o | Working time between battery charging | approx. 60 operations |
| Head rest adjustment | 45o / -45o | Battery charger | Built-in |
| Foot rest motorized adjustment (option) | 80°/-90° | Charging current | 230 V ~50/60 Hz |
| Kidney bench elevation (option) | 150 mm | International Protection Marking | IP-X4 |
